Superlative Arms Carbine Length Low Profile Adjustable Piston Kit .625 Clamp

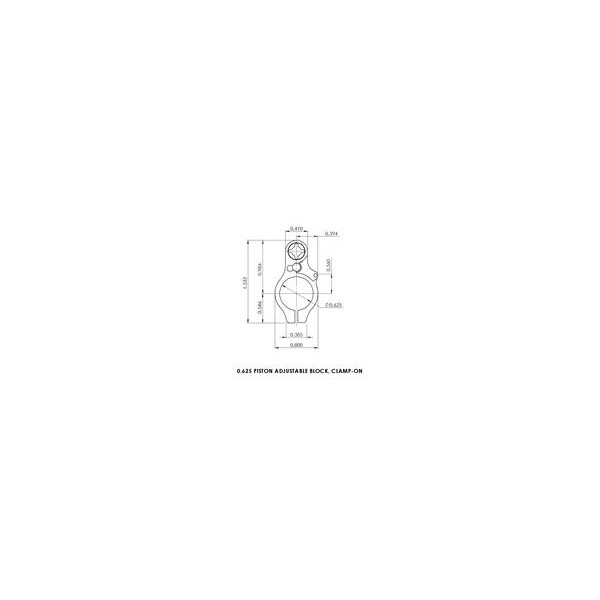

.625" Adjustable Piston System - Carbine Length - Clamp On - Melonited - Low Pro - AR15.  Fits inside most AR15 handguards/rails.  See drawing for exact dimensions.

Now there's a piston kit for your "pencil" and other lightweight AR15 barrels!

• The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler.
• Reduction of felt recoil.
• Patent pending adjustment detent is located outside of the block and therefore no contamination.
• The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up.  Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out.
• When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back.

SPECS:

• Firearm Type:  AR15
• Gas Length:  Carbine
• Barrel Diameter:  0.625"
• Weight:  13.1 oz.
• Piston Block Attachment Type:  Clamp
• Piston Block Material and Finish:  416 SS, Melonite
• Carrier:  Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key
• Gas Adjustment:  (Patent Pending) 30 Locked Positions, Front Of Block
• Bleed Off Port:  (Patent Pending) Front Of Block

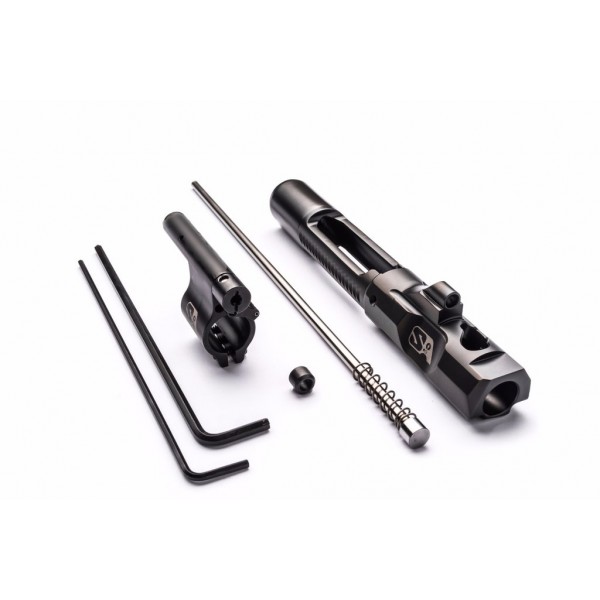

INCLUDED:

• Piston Block Assembly
• Carrier (bolt not included).
• (1) 3/32" X 6"  Hex Key  (tool to adjust gas screw)
• (1) 9/64" X 6" Hex key  (tool to install/remove gas block plug)
• Installation Instructions & QR Code For Video Tutorial
